Product
Full-stack in-house product line delivering complete solutions for liquid cooling safety and thermal management.

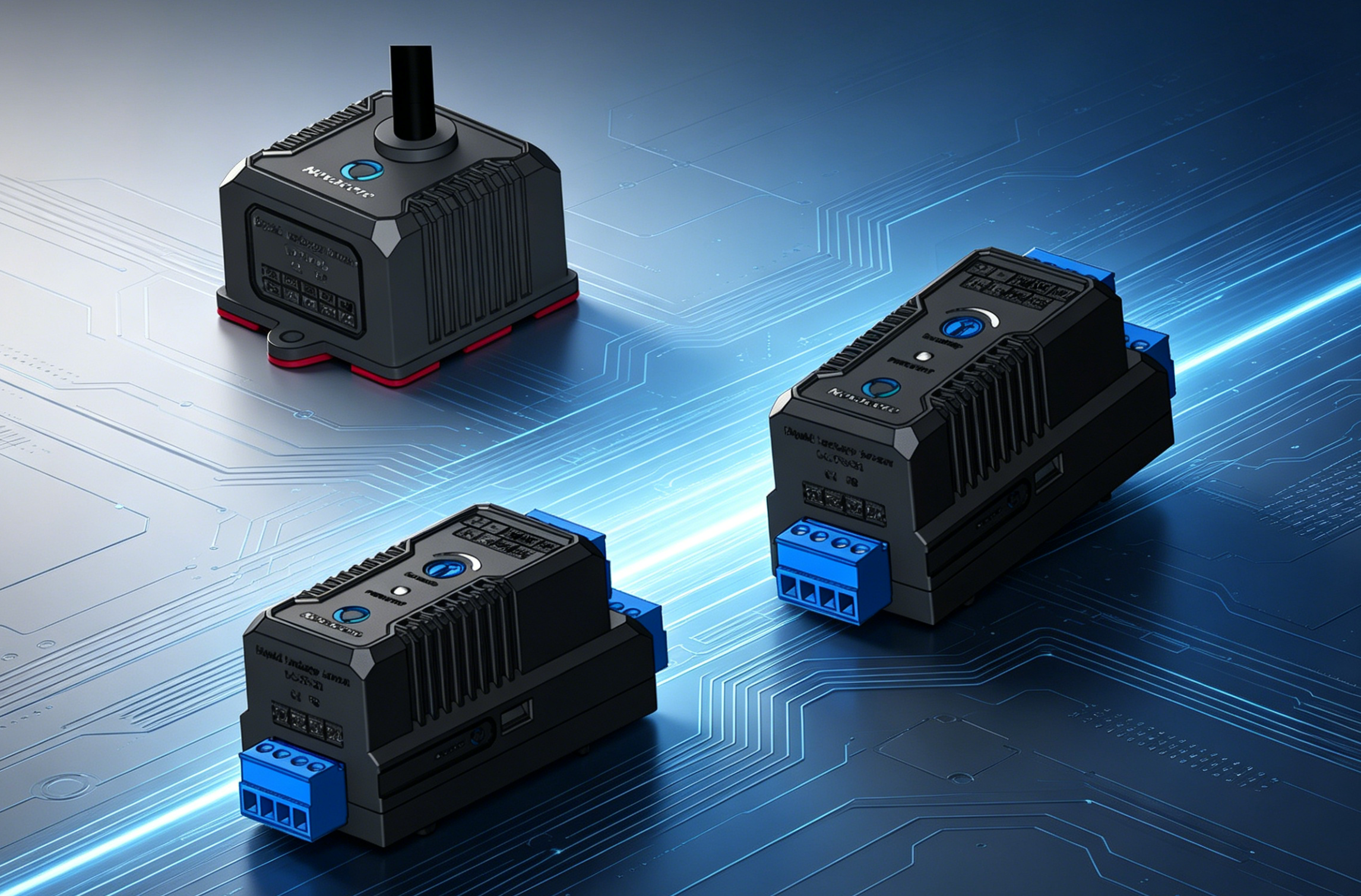

Leak Sensor
High-precision liquid leak detection system with advanced sensing technology for millisecond response, ensuring safe and stable operation of liquid cooling systems.
Technical Specifications
- Detection Accuracy: 5mL
- Response time: <1000ms
- Operating Temperature: 0 ~ 75°C
- Ingress Protection Rating: IP68
- Supply voltage: DC 9 ~ 30V
- Output signal: RS485/dry contact
Key Features
- High-precision resistive voltage divider sensing technology
- High anti-interference capability and low false alarm rate
- Supports multi-node cascaded deployment
- Plug-and-play, easy to install
Use Cases

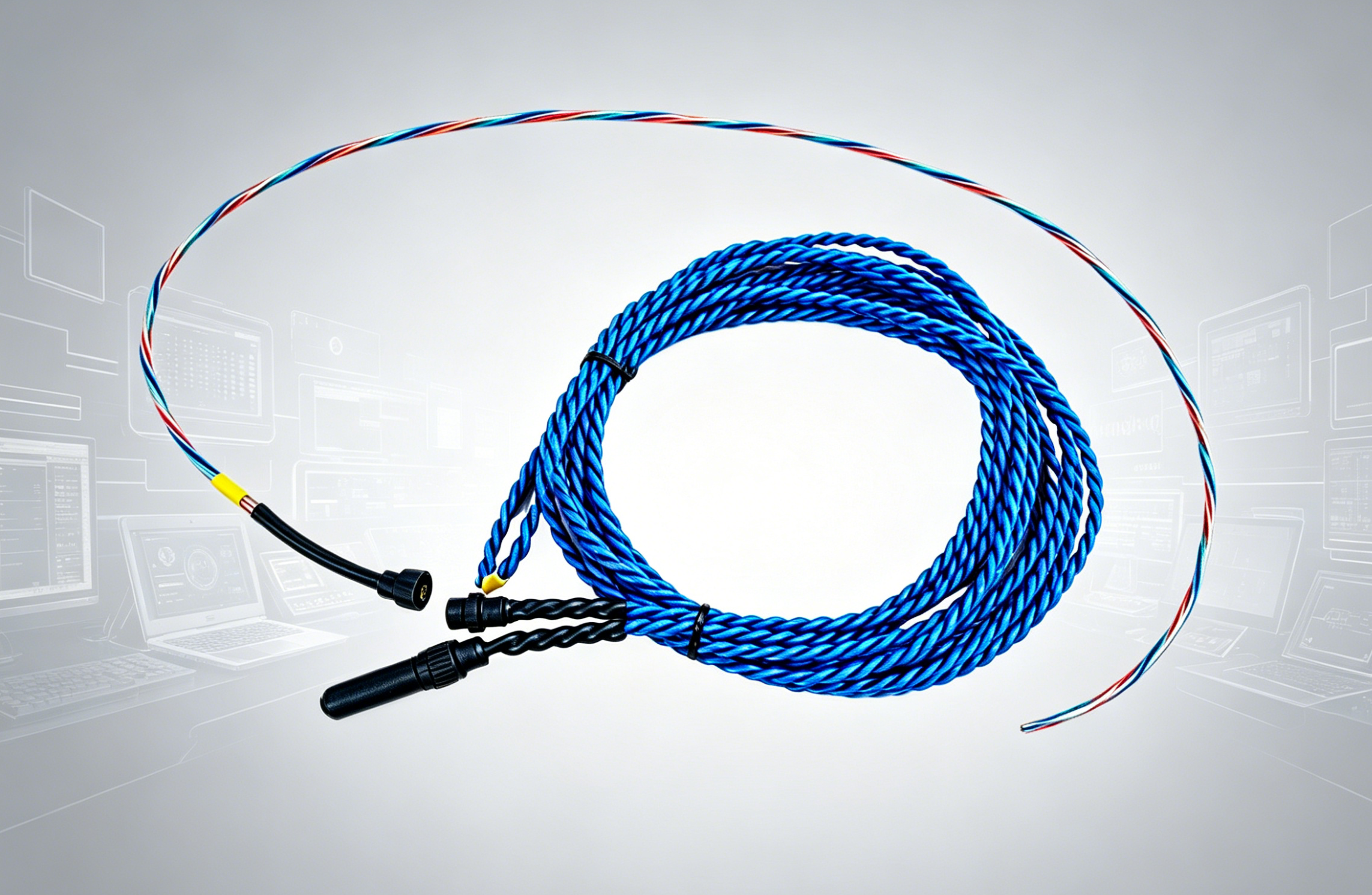

Leak detection cord
Distributed continuous monitoring cable for large-area coverage, precise leak localization, and reliable leak detection in complex environments.
Technical Specifications
- Length check: maximum single length 1000m
- Positioning Accuracy: ±0.1m
- Sensitivity: <5mL
- Operating Temperature: 0~75°C
- Cable Diameter: Φ6mm
- Ingress Protection Rating: IP68
Key Features
- Distributed continuous monitoring with no blind spots
- Precisely locate the leak point
- Corrosion-resistant; designed for harsh environments
- Modular and flexible deployment
Use Cases

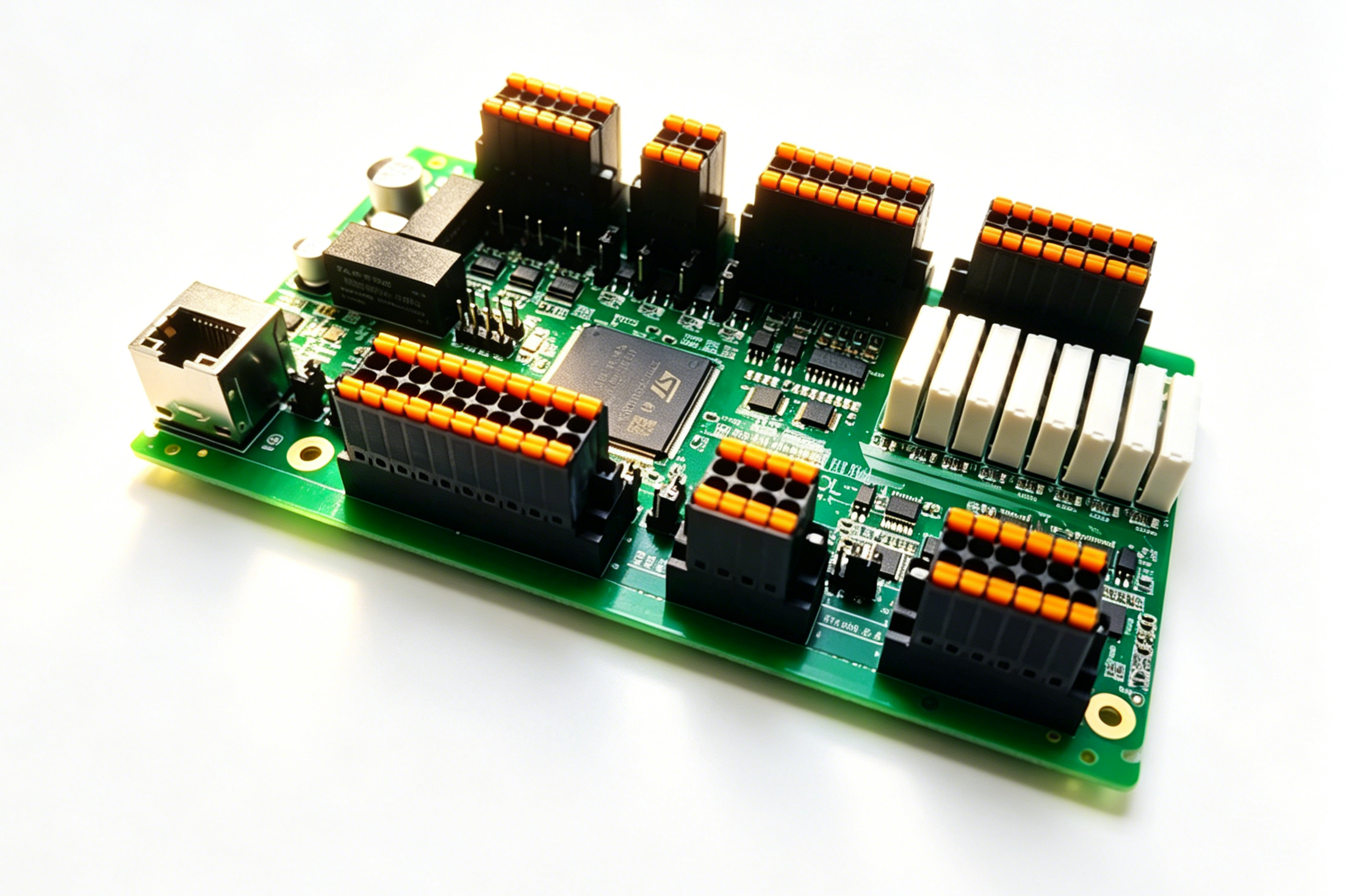

Thermal Management Controller
Intelligent thermal management hub integrating multi-channel sensor data acquisition and advanced control algorithms for precise temperature regulation and energy optimization, significantly reducing data center PUE.
Technical Specifications
- I/O Ports: 50 options available
- Control accuracy: ±0.5°C
- Communication Interface: RS485/Ethernet
- Operating Temperature: -20°C ~ 60°C
- Compatible with: Liquid-cooled CDUs, dummy loads, etc.
- Supported protocols: Modbus/BACnet
Key Features
- Unified access for heterogeneous cold sources
- Variable Frequency Control and On-Demand Cooling Allocation
- Simultaneously collect multi-dimensional data including temperature, pressure, flow rate, and water quality.
- Heat load prediction algorithm: enabling the shift from passive response to proactive control
Use Cases

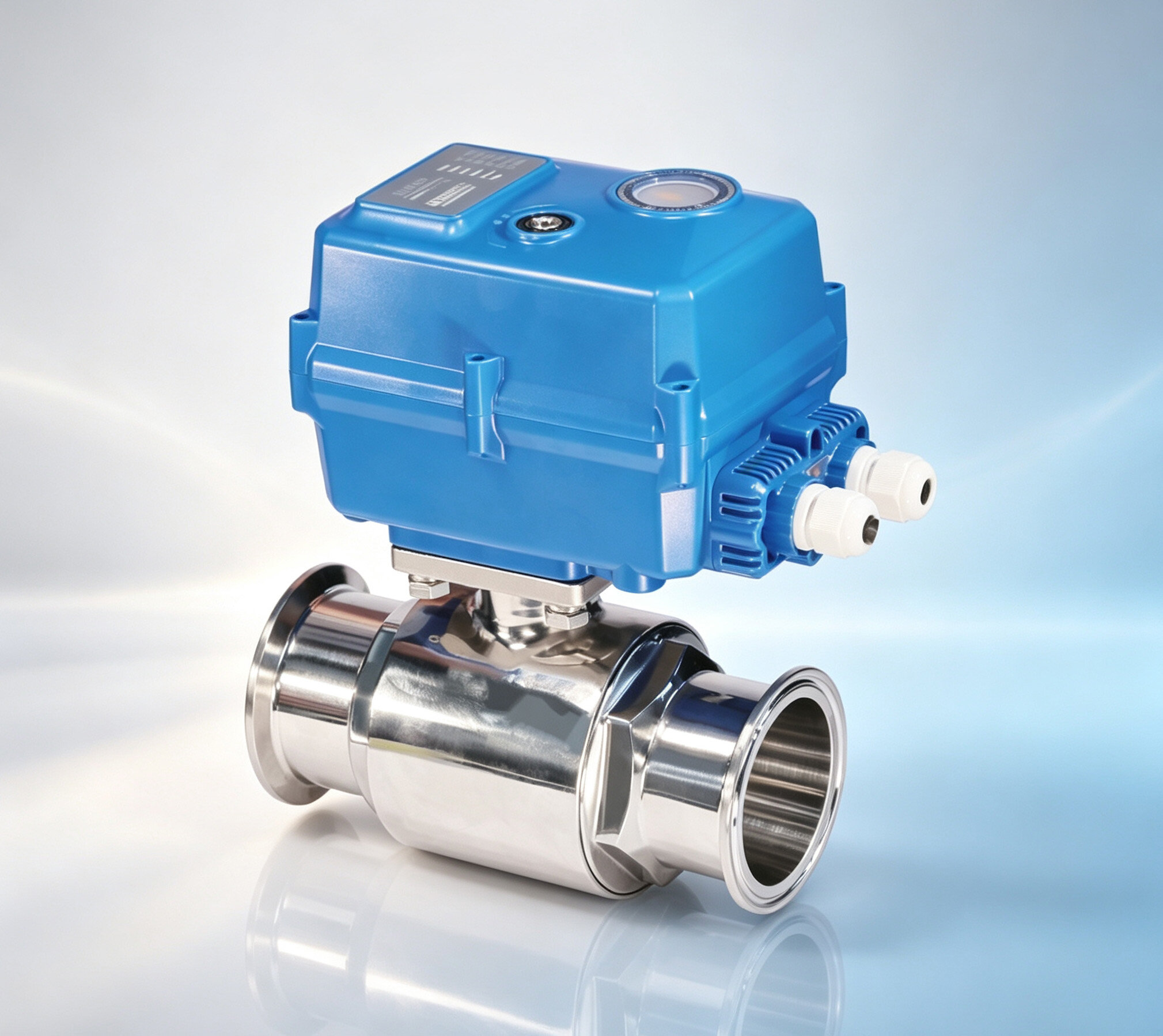

Smart Electric Valve
Precision flow control actuator with high-performance motor drive for rapid, accurate valve positioning to ensure stable fluid system operation.
Technical Specifications
- Diameter Range: DN15-DN200
- Current: ≤11.8A
- Torque: 20 ~ 500 Nm, selectable
- Trip duration: 3s (5r/min)
- Ingress Protection Rating: IP67
- Supply Voltage: DC24-72V
Key Features
- Torque motors offer higher torque density for faster, smoother valve actuation.
- Dual built-in encoders for precise valve opening detection.
- Integrates a vector controller for dynamic closed-loop control of actuator angle, torque, and speed.
- Hypoid gear reducer: compact design with high reduction ratio, further minimizing actuator size.
